کارت گرافیک NVIDIA مدل Quadro K620 ظرفیت 2GB پنل کوتاه
نقد و بررسی کارت گرافیک NVIDIA Quadro K620

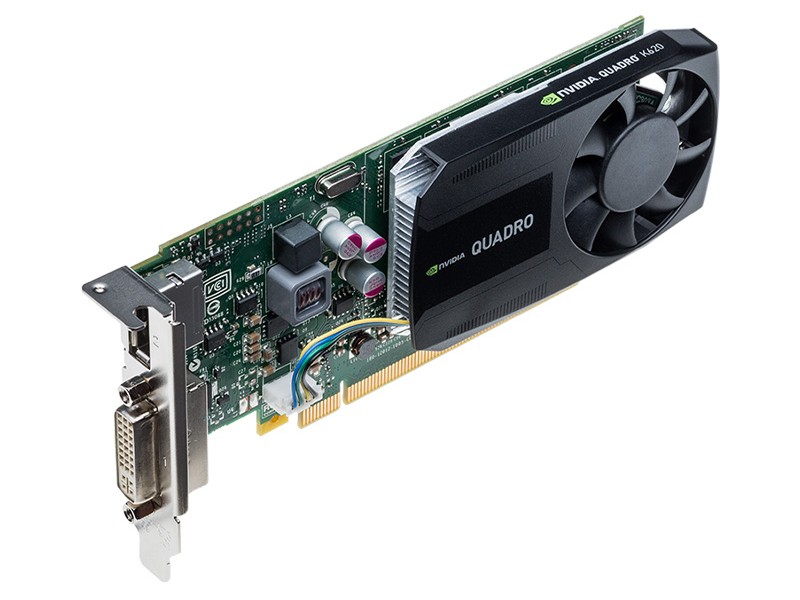

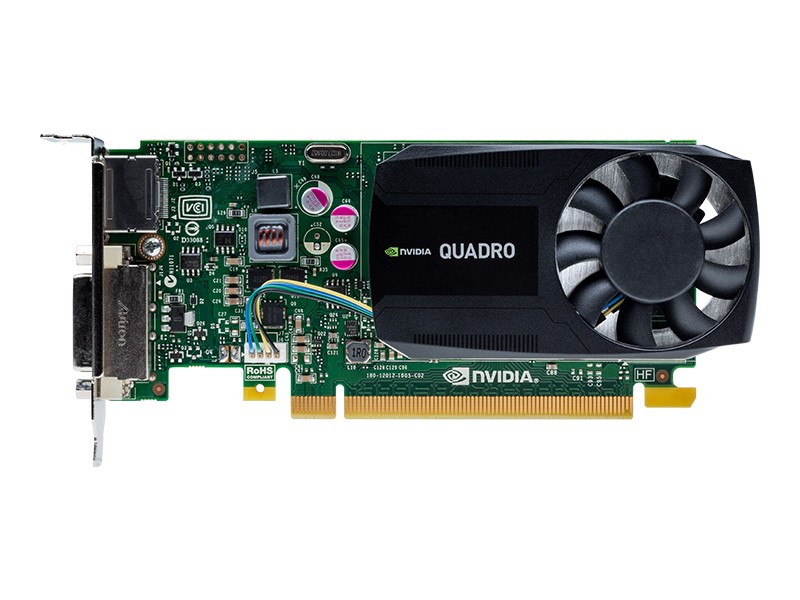

Powered by NVIDIA Quadro K620
Thermal Solution : Ultra-Quiet Active Fansink
memory interface : 2 GB GDDR3 128bit
Memory Bandwidth : 29.0 GB/s
NVIDIA CUDA Cores : 384
Max Screen Resolution : 3840 x 2160 30bit Color

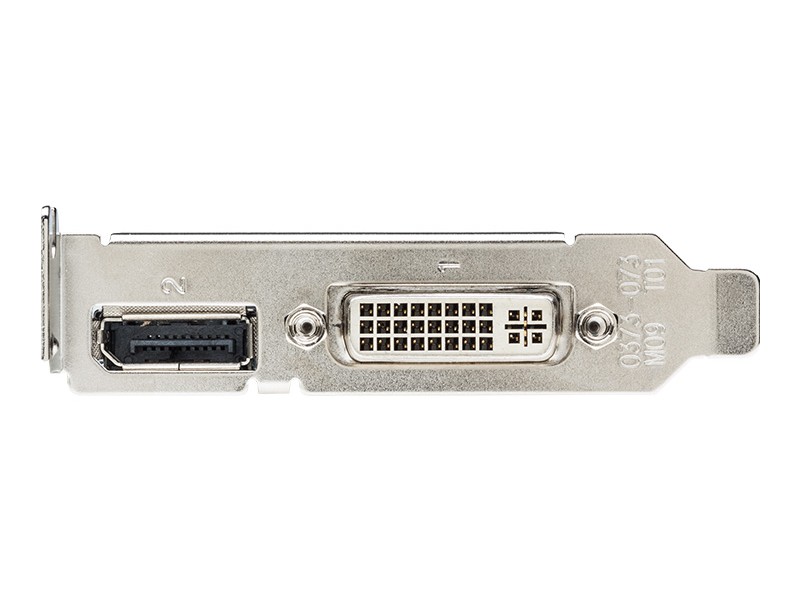

Connectivity : 1x DVI-I Dual Link | 1x DisplayPort 1.2
DisplayPort 1.2 : Yes
DisplayPort with Audio : Yes

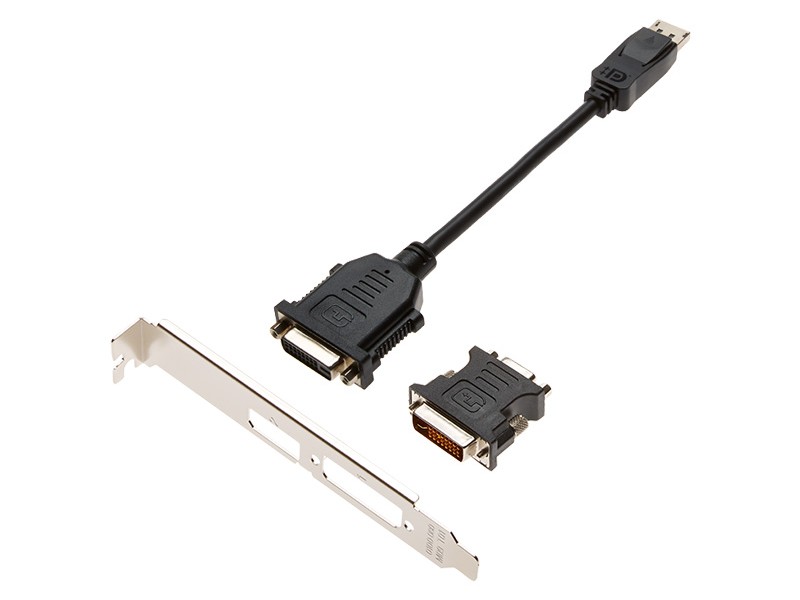

DVI-D Single-Link Connector : Via included adapter
VGA Support : Via included adapter
Number of Displays Supported : 4 ( DisplayPort 1.2 Multi-Streaming )
Max Simultaneous Displays : 2 Direct , 3 DP 1.2 Multi-Stream
Max DP 1.2 Resolution : 3840 x 2160 at 60Hz (direct connect)
Max DVI-I DL Resolution : 2560 × 1600 at 60 Hz
Max DVI-I SL Resolution : 1920 × 1200 at 60 Hz
Max VGA Resolution : 2048 × 1536 at 85 Hz
Interface : PCI Express 2.0 x16
HDCP Support : Yes
Core Clock : 1058 MHz
Boost Clock : 1124 MHz
Memory Clock : 900 MHz ( 1800 Mbps effective )
Graphics APIs : Shader Model 5.0 , OpenGL 4.4 , DirectX 11
Compute APIs : CUDA , DirectCompute , OpenCL
NVIDIA Mosaic : Yes ( Windows 8.1 - 8 - 7 and Linux )
NVIEW : Yes
NVIDIA 3D Vision and 3D Vision Pro : Yes (via USB connection to 3D Vision hub)
Maximum Power Consumption : 41W
Energy Star Enabling : Yes
Width : 1 Slot
Form Factor : Low Profile
Dimensions : 160 x 69 x 15 mm
Weight : 250 Gram
