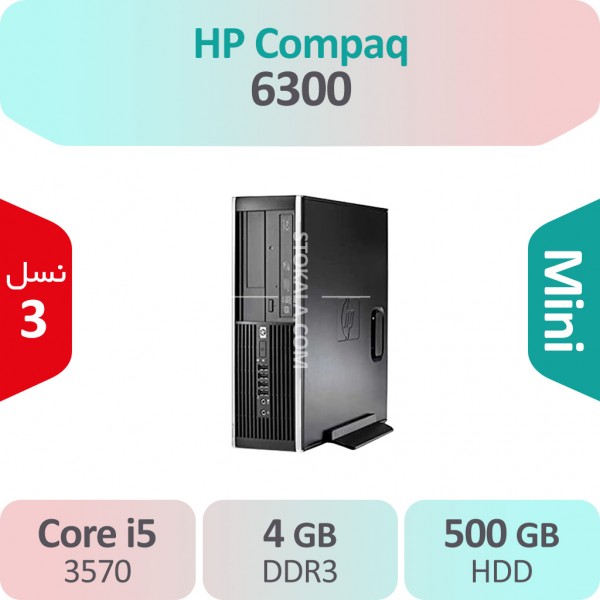

کیس استوک HP Compaq 6300 i5 سایز مینی

نقد و بررسی کیس استوک HP Compaq 6300 i5 سایز مینی

CPU : Intel Core i5 3570 6MB Cache  3.4GHz upto 3.8GHz

Ram : 4GB DDR lll (Upto 32GB)

Hard Disk : 500GB Sata

Graphic : Intel HD 2500 (shared to 1.7 GB)

USB 3 x 4

Processor / Chipset

• CPU: Intel Core i5 (3rd Gen) 3570 / 3.4 GHz

• Max Turbo Speed: 3.8 GHz

• Number of Cores: Quad-Core

• CPU Qty: 1

• Max CPU Qty: 1

• CPU Upgradability: Upgradable

• Processor Main Features: Intel Turbo Boost Technology 2

• Chipset Type: Intel Q75 Express

Cache Memory

• Installed Size: 6 MB

• Cache Per Processor: 6 MB

RAM

• Installed Size: 4 GB / 32 GB (max)

• Technology: DDR3 SDRAM - non-ECC

• Form Factor: DIMM 240-pin

• Features: Unbuffered

Hard Drive

• Type: HDD

• Capacity: 1 x 500 GB

• Interface Type: SATA 6Gb/s

• Spindle Speed: 7200 rpm

Storage Controller

• Type: 1 x SATA - integrated

• Controller Interface Type: SATA 6Gb/s

Optical Storage

• Type: DVD±RW (±R DL) / DVD-RAM - SATA

Monitor

• Monitor Type: None.

Graphics Controller

• Type: Integrated

• Graphics Processor: Intel HD Graphics 2500 Dynamic Video Memory Technology

• Video Interfaces: VGA, DisplayPort

• HDCP compatible: Yes

• Max Monitors Supported: 2

Audio Output

• Type: Integrated

• Sound Output Mode: Stereo

• Max Sampling Rate: 192 kHz

• Compliant Standards: High Definition Audio

Input Device

• Type: Mouse, keyboard

Networking

• Type: Integrated

• Ethernet Controller: Intel 82579LM

• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet

• Remote Management Protocol: ASF 2.0

• Features: Wake on LAN (WoL), PXE support, auto-uplink (auto MDI/MDI-X)

• Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az

Expansion / Connectivity

• Bays:

  • 1 (total) / 0 (free) x external 5.25"

  • 1 (total) / 1 (free) x external 3.5"

  • 1 (total) / 0 (free) x internal 3.5"

• Slots:

  • 1 (total) / 1 (free) x PCI - low-profile

  • 2 (total) / 2 (free) x PCIe 2.0 x1 - low-profile

  • 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile

  • 1 (total) / 0 (free) x CPU

  • 4 DIMM 240-pin

• Interfaces:

  • 6 x USB 2.0 ( 4 front, 2 rear )

  • 1 x serial

  • 1 x PS/2 mouse

  • 1 x PS/2 keyboard

  • 1 x VGA

  • 1 x DisplayPort

  • 1 x headphones ( 1 in front )

  • 1 x microphone ( 1 in front )

  • 1 x audio line-out

  • 1 x audio line-in

  • 1 x LAN (Gigabit Ethernet)

  • 4 x USB 3.0
